Rede
Configure Rede with DEUNA, verify the required credentials and capabilities, and test the connection before production.
On this page
This page provides a comprehensive guide for integrating Rede with DEUNA.
Get Started with Rede#
Rede is a Brazilian payment platform from the Itau group, with more than 25 brands in its portfolio.
Supported Operations by Country
Rede
Payment gatewayBrazil
View supported capabilities
Integration
DirectPayconnect
General capabilities
Payment types
Credit cards
Operations and features
3D Secure3D Secure
Brazil
Currencies
BRL
Payment types
Credit cardsDebit cards
Operations and features
3D Secure 2.0AuthorizationCapture3D SecureInternational cardsInterest-bearing installmentsInterest-free installmentsPartial capturePartial refundRefundSaleSplit acquiringCard verificationVoid
Card networks
AmexDinersDiscoverEloHipercardJcbMastercardVisa
Local payment methods
BoletoCashPix
Supported Payment Methods
- Credit cards: Visa, Mastercard, Hiper, American Express, Elo, Diners.
- Debit cards: Visa, Mastercard, Elo.
Requirements#
You must have an account created on Rede and properly configured to integrate with DEUNA.
You must also request the following credentials from your Rede or Itau account manager:
- PV (affiliation number)
- Rede Token
Integrate Rede#
After searching for Rede in Connections, you must configure Rede in your store.
Configure Rede in your store

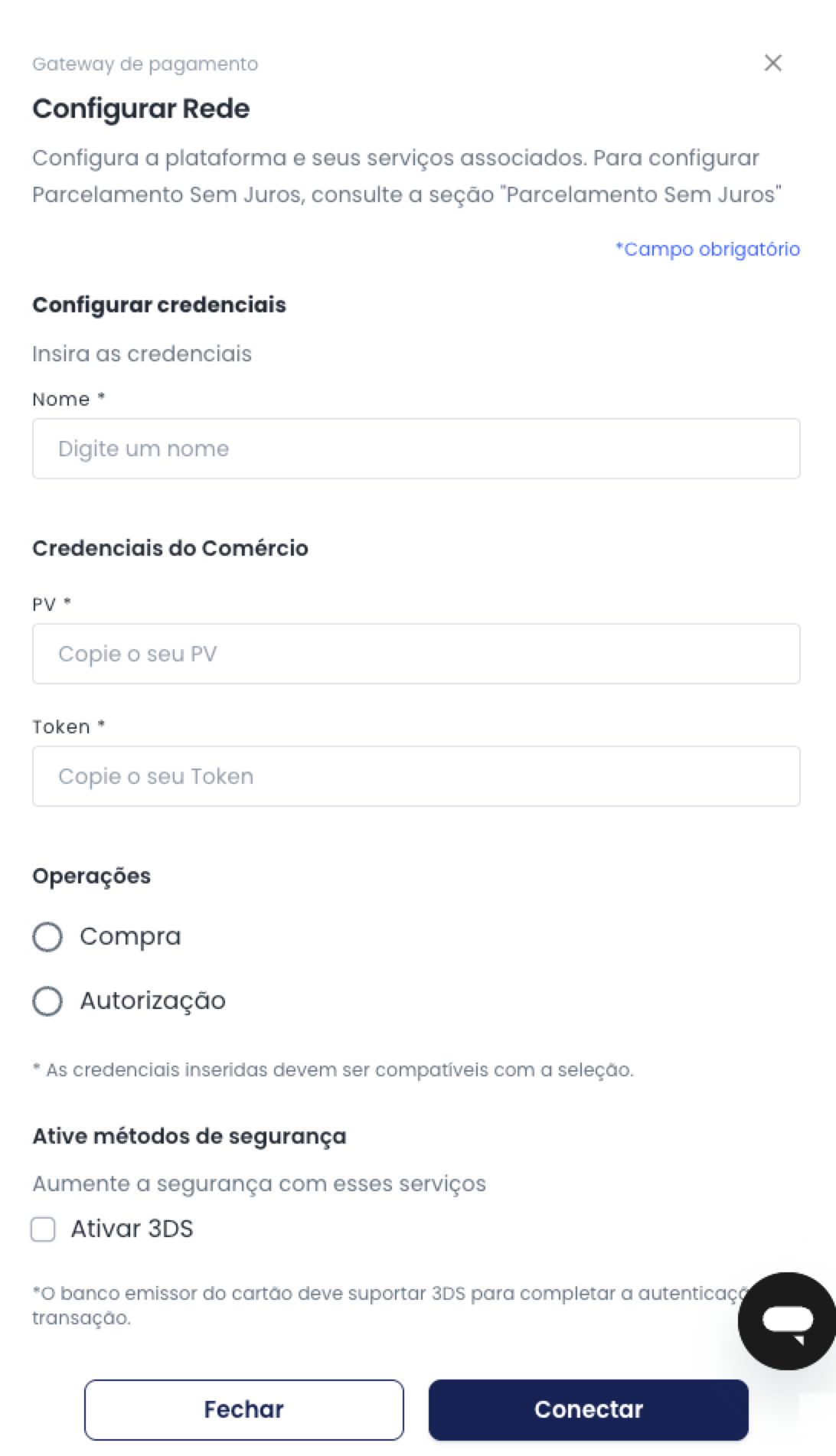

In Connections, a window like the following will open:
- Enter the following credentials:
- In Name enter a name to reference the credential.
- In PV enter your Rede PV.
- In Token enter the Rede token.
- Choose the type of operation you want to perform:
- Purchase
- Authorization
- Choose if you want to activate 3DS.
- Click Connect.
Test Cards
You can use the following cards for testing in your Sandbox environment:
| Brand | Type | Card Number | Expiration Date | CVV | Token provided by the brand (tokenCode) | Token cryptogram provided by the brand (tokenCryptogram) |
|---|---|---|---|---|---|---|
| Mastercard | Debit | 5277696455399733 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Mastercard | Credit | 5448280000000007 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Mastercard (BIN 2) | Debit | 2223000148400010 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Mastercard (BIN 2) | Credit | 2223020000000005 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Visa | Debit | 4761120000000148 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Visa | Credit | 4235647728025682 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Hipercard | Credit | 6062825624254001 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Hiper | Credit | 6370950847866501 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Diners | Credit | 36490101441625 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| JCB | Credit | 3569990012290937 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| JCB (19 digits) | Credit | 3572000100200142753 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Credz | Credit | 6367600001405019 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Elo | Credit | 4389351648020055 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Amex | Credit | 371341553758128 | 01/35 | 1234 | This card does not have a token | This card does not have a token |
| Cabal | Credit | 6042034400069940 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Soocred | Credit | 6364142000000122 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Credsystem | Credit | 6280281038975334 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Banescard | Credit | 6031828795629272 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Visa | Credit | 4895370010000005 | 01/35 | 123 | 4830442035272279 or 4830447374649789 or 4894093711004024 | AgAAAAAAAIR8CQrXSohbQAAAAAA= |
| Visa | Debit | 4824810010000006 | 01/35 | 123 | 4894092622280160 or 4894096020766258 or 4894094167345770 | AAABAkkREQAAAAAAAAAAAAAAAAA= |
| Mastercard (BIN 2) | Credit | 2223000250000004 | 01/35 | 123 | - | ANbuvvxnDbK2AAEShHMWGgADFA== |
| Mastercard (BIN 2) | Debit | 5204970000000007 | 01/35 | 123 | - | AOPAIMgflr8UAAIShHMWGgADFA== |
| Elo | Debit | 4514166653413658 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Elo | Debit | 4389356784017450 | 01/35 | 123 | This card does not have a token | ANfuuvxnDbK2AAESiXMWGgAEFw== |
| Elo | Credit | 4389358876174389 | 01/35 | 123 | This card does not have a token | AIeb2oot61nRAAHBnZ8HAAADFA== |
| Elo | Debit | 5067230000009011 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Elo | Voucher | 5041758436269362 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Ticket | Voucher | 4514166603616681 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Alelo | Voucher | 4389357063526690 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Sodexo | Voucher | 6363688827373622 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Caju | Voucher | 5284776885068867 | 01/35 | 123 | This card does not have a token | This card does not have a token |
| Flex | Voucher | 5490630354637860 | 01/35 | 123 | This card does not have a token | This card does not have a token |
Rede Considerations
Keep in mind the following Rede business rules in your payment solution:
- Authorization must be captured within the maximum time frame according to the merchant's business category.
- Partial capture is allowed by sending an amount lower than the original transaction value.
- Only total cancellations are allowed within a specific period. After this period, the authorization is automatically cancelled.
- Cancellations can be partial or total.
- Cancellation requests for debit transactions must be made within 7 days.
- For credit card transactions, cancellation requests can be made up to 90 days, but may vary depending on the establishment.
- Cancellations requested on the same day as authorization are processed immediately; otherwise, they are processed on D+1.
- Partial cancellations for capture transactions are available only on D+1.
- For Maestro (debit) transactions, only one partial cancellation is allowed.
- The notification URL (callback) allows returning transaction data via POST after processing cancellations performed on D+1.
- Consultation of pending pre-authorizations can be performed within 60 days; after that, the status will return to "not found".
- For chargebacks, Rede notifies the merchant through the following channels: registered email and SMS, telephone call (for customers with sales disputes over R$ 1,000.00), and the Rede Portal. This allows the merchant to present a defense for chargeback reversal analysis.
- Multiple partial refunds are performed through the direct API.
